Slurry pump driving type
Slurry pump driving can be divided into two types, coupling drive and V-belt drive.
- Coupling drive is direct driving, always be called DC drive

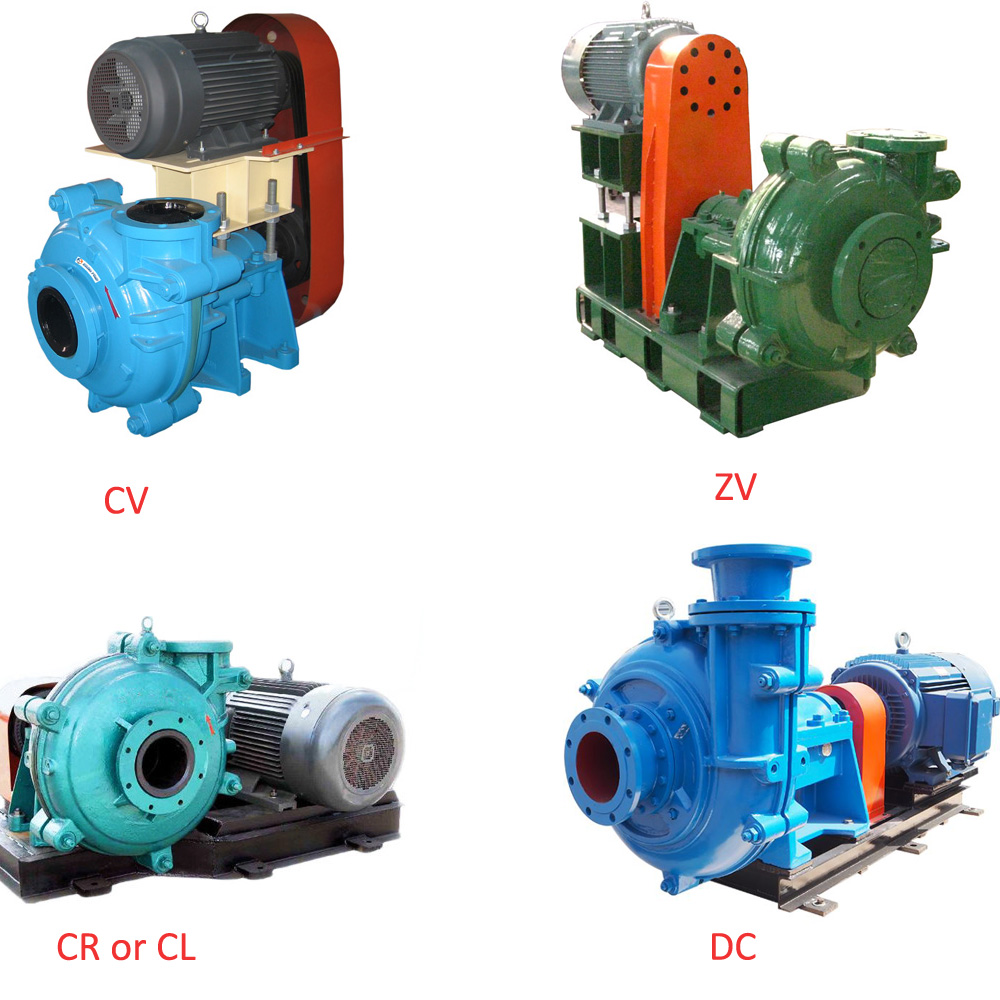

- V-belt drive, represent by CV, ZV, CR, ZR and ZL according to the arrangement direction.(according to below shows)
ZGB, ZD, PNJ series slurry pump is Ruite pump design and manufacture, we choose DC drive firstly,when necessary, CR drive also be a choice.
AH, HH, G, GH, L series slurry pump outlet flange direction, can be used every 45°, and its direction is represented by A, B, C, D, E, F, G, K.
Slurry pump working pressure
The maximum working pressure of ZGB type slurry pumps in series is 3.6MPa. The maximum working pressure of AH, HH, AHP type pumps should meet the requirements in the table.
| Pump model number | Max working pressure KPa | |
| Cast iron frame | Ductile Iron frame | |
| 1.5/1AH, 2/1.5AH, 3/2AH, 4/3AH | 1400 | |
| 6/4AH, 8/6 AH | 1050 | 2100 |
| 10/8AH, 12/10AH, 14/12AH, 16/14AH | 2100 | |
| 20/18AH | 1400 | |
| 1..5/1HH, 3/2HH, 4/3HH, 6/4HH, 8/6HH,6S-HP | 3450 | |
| 6S-H, 8/6S-H | 1700 | |
| 6/4AHP | 4150 | |
| 12/10AHP | 4950 | |
| 14/12AHP | 5800 | |
| 20/18AHP | 3450 | |
Ruite Pump is devoting to offering the best slurry pump solution around the world. With years of accumulation and development, we have formed a complete system of slurry pump production, design, selection, application and maintenance. Our products are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries. Thanks to the trust and recognition of our clients from over 60 countries, we are becoming one of the most important slurry pump suppliers in China.
If you want to know more about slurry pump or have any inquiries, welcome to contact with us.
