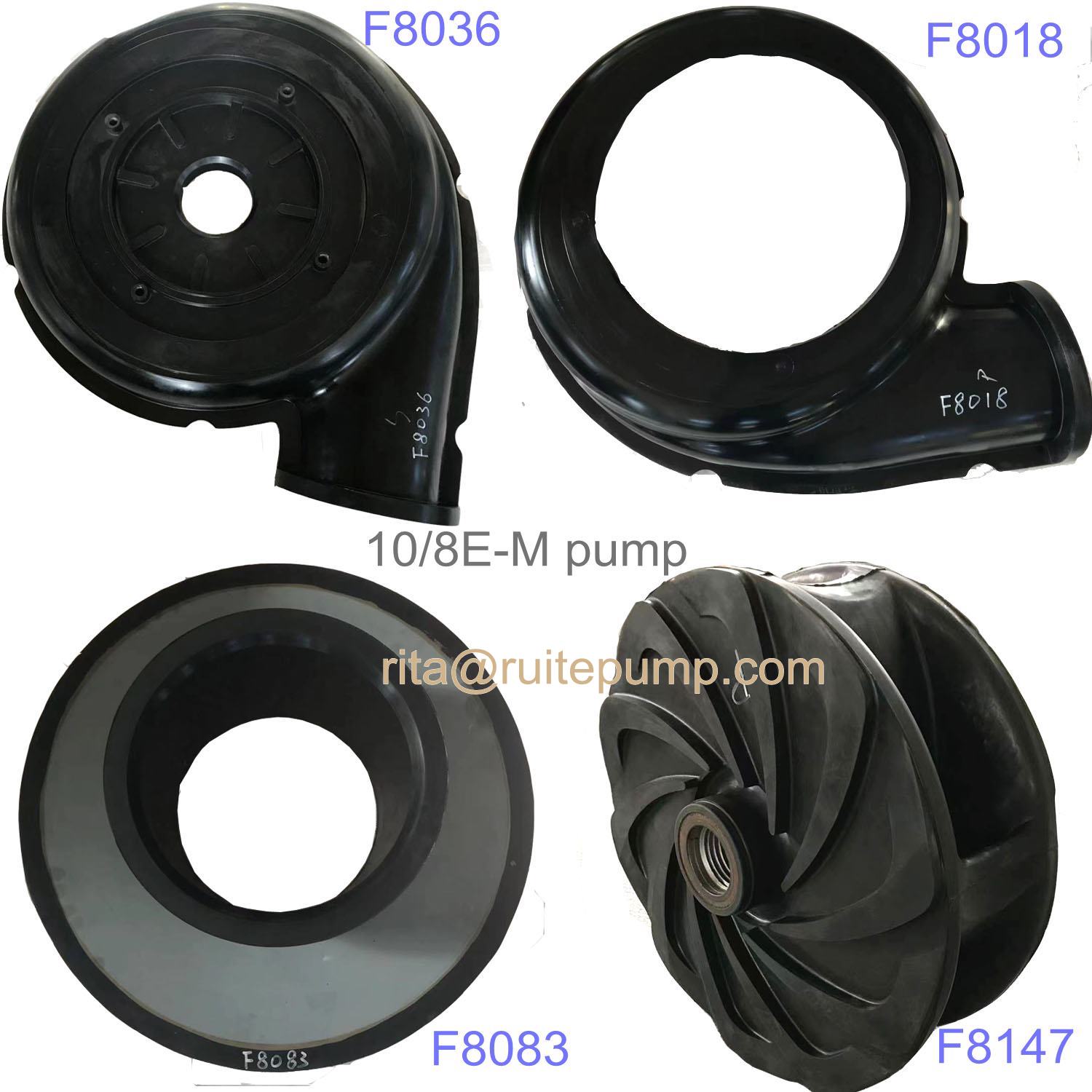

F8036 Frame plater liner for 10/8F-AHR slurry pump
F8036 Frame plater liner for 10/8F-AHR slurry pump
The main wet parts of our slurry pumps are made of corrosive resistant nature rubber elastic material or high chrome alloy(made of Cr 26-28%, with hardness HRC60+) wear resistant metal, and it's made as per standard which can be interchangeable with famous brand pumps.
We can also accept OEM services, which means we can produce it as your own design.
| Cover Plate Liner | Frame plate liner | Slurry Pump | Materials |
| B1017 | B1036 | 1.5/1B-AHR | R55, R33, R26, S42, S12, S31, S45, S51 |
| B15017 | B15036 | 2/1.5B-AHR | |
| C2017 | C2036 | 3/2C-AHR | |
| D3017 | D3036 | 4/3C-AHR, 4/3D-AHR | |
| E4018 | E4036 | 6/4D-AHR, 6/4E-AHR | |
| F6018 | F6036 | 8/6E-AHR, 8/6F-AHR, 8/6R-AHR | |
| F8018 | F8036 | 10/8F-AHR, 10/8E-M, 10/8F-M, 10/8R-M | |
| G8018 | G8036 | 10/8ST-AHR | |
| FAM10018 | FAM10036 | 12/10F-AHR | |
| F100018 | F10036 | 12/10F-M, 12/10R-M | |
| G10018 | G10036 | 12/10ST-AHR | |
| FAM12018 | FAM12036 | 14/12F-AHR | |
| G12018 | G12043 | 14/12ST-AHR | |
| H14018 | H14043 | 16/14TU-AHR | |
| U18018 | U18043 | 20/18TU-AHR |
Main Wear Parts List of Slurry Pumps
Metal Lined Slurry Pump Spares. (A05, A33, A07, A49)
Cover Plate / Throat Bush / Volute Liner / Impeller / Frame Plate Liner Insert / Stuffing Box / Frame Plate / Shaft Sleeve / Expeller / Expeller ring / Bearing Assembly.
Cover Plate / Throat Bush / Volute Liner / Impeller / Frame Plate Liner Insert / Stuffing Box / Frame Plate / Shaft Sleeve / Expeller / Expeller ring / Bearing Assembly.
Rubber Lined Slurry Pump Spares. (R55, PU)
Throat Bush / Cover Plate Liner / Impeller / Frame Plate Liner Insert / Expeller ring.Polyurethane Slurry Pump Spares
Throat Bush / Cover Plate Liner / Impeller / Frame Plate Liner Insert / Expeller ring.Polyurethane Slurry Pump Spares
Small Parts of Bearing Assembly
Bearing housing / Grease Retainer / Bearing / Piston Ring / Labyrinth / End Cover / Lock Nut.
Small Parts of Seal Accessories
Stuffing Box / Packing / Neck Ring / Split Packing Gland / Lantern Ring / Lantern Restrictor / Expeller / Expeller Ring / Shaft Sleeve / Shaft Spacer / Mechanical Seal / Mechanical Seal Box
Email: rita@ruitepump.com
Whatsapp: +8619933139867
TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:
| Material Code | Material Description | Application Components |
| A05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert |
| A07 | 14%-18% Cr White Iron | Impeller, liners |
| A49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners |
| A33 | 33% Cr Erosions & Corrosion Resistance White Iron | Impeller, liners |
| R55 | Natural Rubber | Impeller, liners |
| R33 | Natural Rubber | Impeller, liners |
| R26 | Natural Rubber | Impeller, liners |
| R08 | Natural Rubber | Impeller, liners |
| U01 | Polyurethane | Impeller, liners |
| G01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| D21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| E05 | Carbon Steel | Shaft |
| C21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| S21 | Butyl Rubber | Joint rings, joint seals |
| S01 | EPDM Rubber | Joint rings, joint seals |
| S10 | Nitrile | Joint rings, joint seals |
| S31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| S44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| S50 | Viton | Joint rings, joint seals |
