Deep Well Solar Pump Complete System 210W 300V Solar Pump Solar Pump Controller MPPT

short description:

Max flow: 42m3/h

Max lift height:180m

Max Power: 1500w

Pump diameter: 3 inch, 4 inch


Product Detail

Material

Product Tags

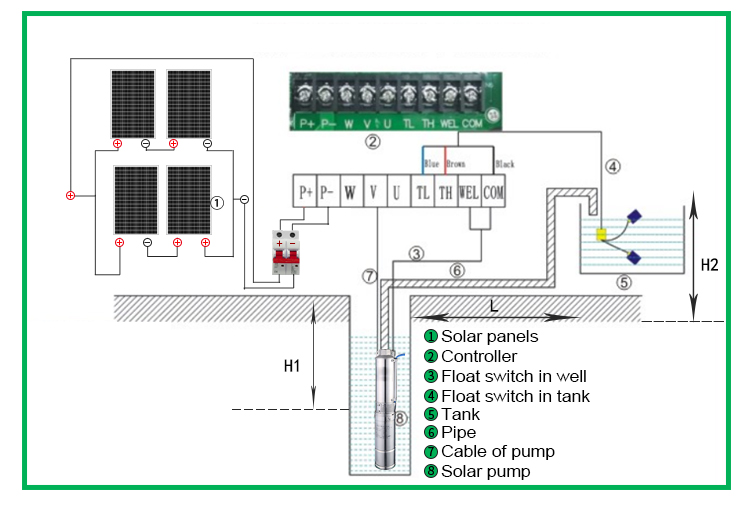

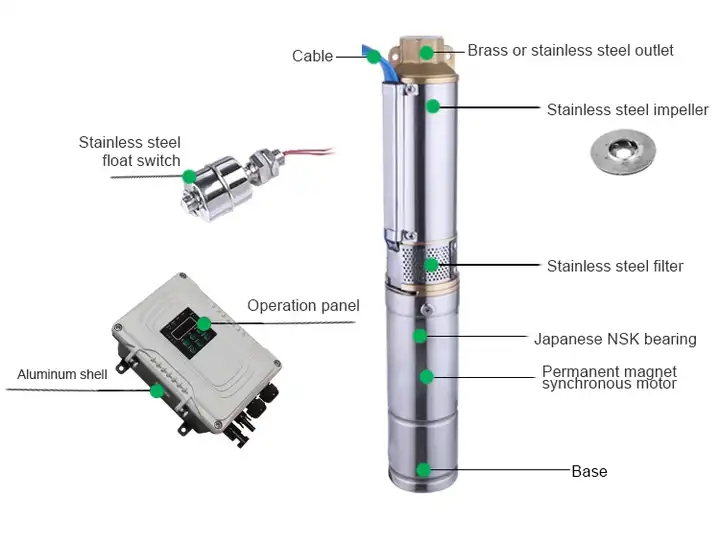

Deep Well Solar Pump Complete System 210W 300V Solar Pump Solar Pump Controller MPPT Introduction:

Screw pump also known as a progressive cavity pump or a single screw pump, is a type of positive displacement pump that operates using the principle of a rotating screw inside a stator. Here's a breakdown of the working process of a screw mono pump:

www.ruitepumps.com

www.ruitepumps.com

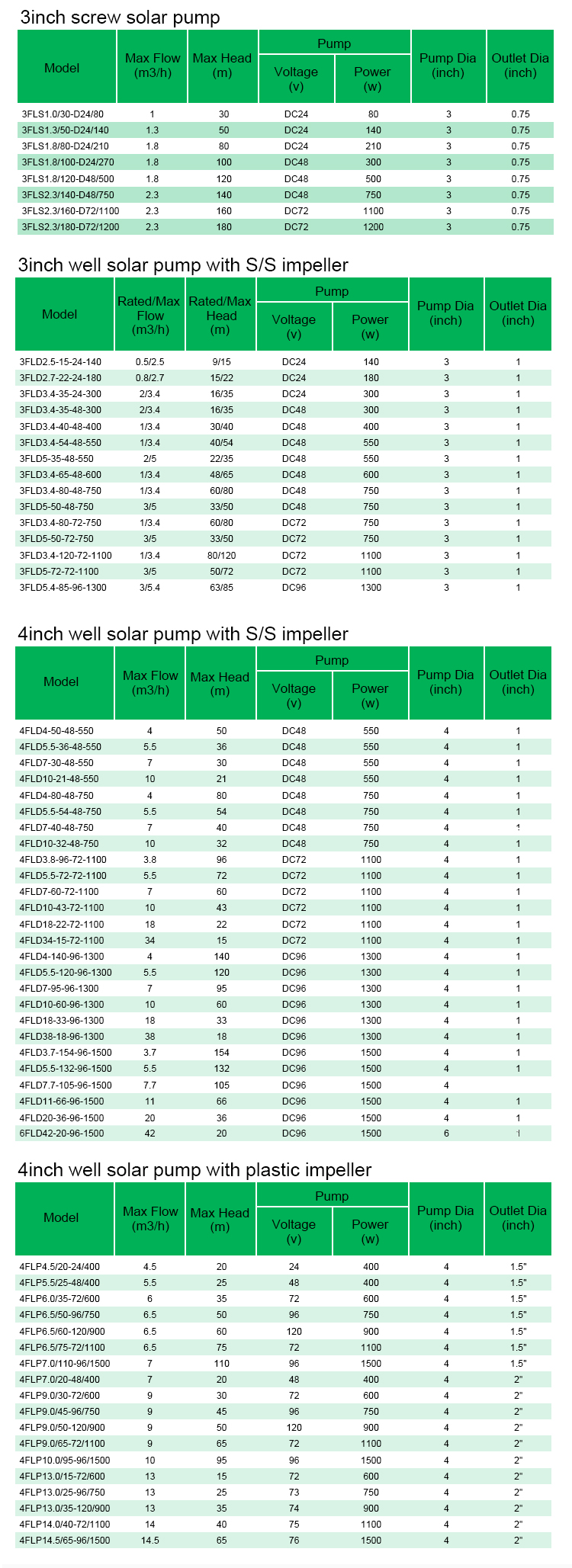

Deep Well Solar Pump Complete System 210W 300V Solar Pump Solar Pump Controller MPPT Performance Data:

www.ruitepumps.com

Deep Well Solar Pump Complete System 210W 300V Solar Pump Solar Pump Controller MPPT  Feature:

(1) Waterproof grade: IP65

(2) Ambient temperature: -15C-60C

(3) MPPT function, the solar power uilization rate is higher.

(4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.

(5) LED displays the power, voltage, current, speed etc working condition.

(6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and user also can change the speed of pump manually.

(7) Automatically start and stop working.

(8) Water proof and leak-proof: Double seal effect.

(9) Soft start: No impulse current, protect the pump motor.

(10) High voltage/Low voltage/Over- current/High temperature protection



To choose the right submersible solar pump, please contact us. Our technical people will choose the right pump for you.

If you need other types pump, please tell us your detail requirements, our technical people will choose the right pump for you.

Email: rita@ruitepump.com

Whatsapp/wechat: +8619933139867


  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump  Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals
