16/14TU-TH heavy duty Slurry Pump for mining
Description
TH series are single-stage, single-suction, cantilever, double-shell, horizontal centrifugal slurry pumps.They are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries for Conveying strong corrosive, high-concentrative slurries.Especially suitable for a variety of harsh working conditions, it is the first choice for the transportation of mine mill slurry and tailings slurry.They are mainly used for mill underflow, cyclone feeding, flotation, tailings efflux, sand removal, dredging, FGD, heavy media, ash removal, etc.
Diameter: 25mm～450mm
Power: 0-2000kw
Flow rate: 0～5400㎥/h
Head: 0～128m
Speed: 0～3600rpm
Material: high chrome alloy or rubber

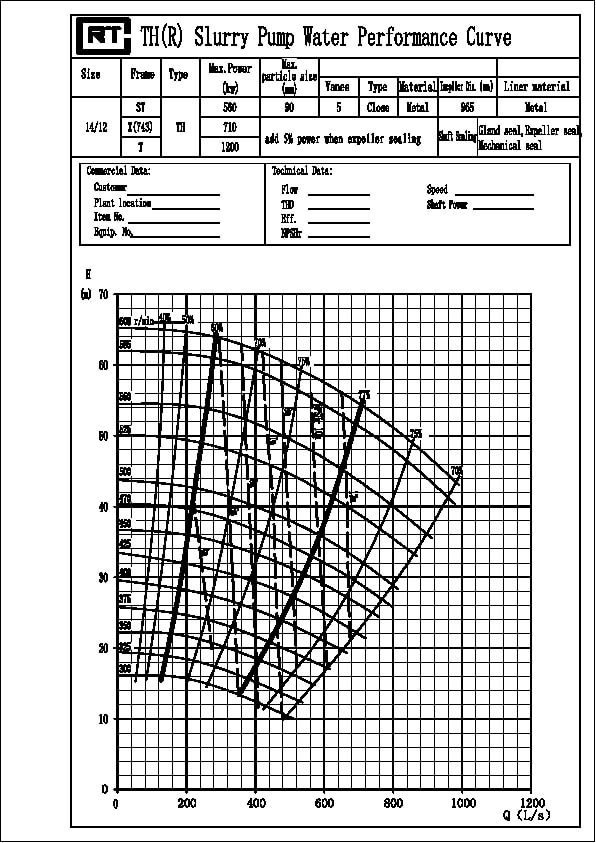

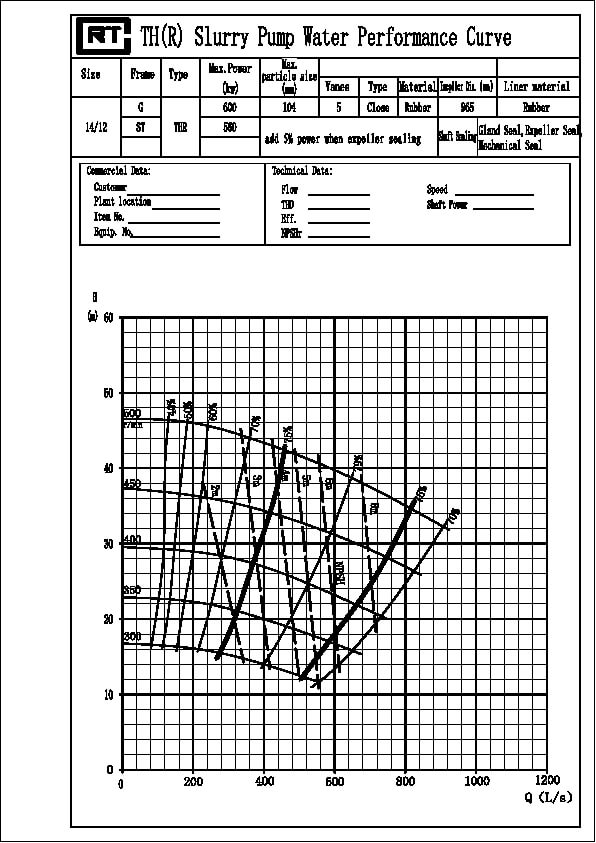

TH(R) Slurry Pump Water Performance Curve
Application
1、Slurry is usually classified according to the concentration of solids. Engineering classification of slurry is more complex and involves concentration, particle size, shape and weight in order to determine abrasion severity. For engineering selection of slurry pumps, slurry is classified as class 1, class 2, class 3 and class 4.
2、Selection of slurry pumps is more difficult than selection of pumps for water and liquids. Many factors and corrections to the duty point affect brake horsepower and wear. The peripheral speed of the impeller is one of the main features and classification of slurry pumps. Speed must be in accordance with the slurry type classification (abrasion classification) in order to maintain a reasonable life in service due to high abrasion of solids.
Shijiazhuang Ruite Pump Co.Ltd
Abrasion Resistant Solid Handling Centrifugal Sand Washing Slurry Pump
TH series Centrifugal Horizontal Heavy Duty Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
Applications
The RT centrifugal heavy duty alloy liner mine taling slurry pump is the pump for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes. it could also be used in dredging of setling laqoons and pumping of drlling mud etc.
| ·Mineral processing | ·Ash handling | ·Cyclone feeds | ·Chemical slurry service |
| ·Coal preparation | ·Effluent handling | ·Wet crushers | ·Aggregate processing |
| ·Ball mill discharge | ·SAG mill discharge | ·Rod mill discharge | ·Fine primary mill grinding |
| ·Tailings | ·Secondary grinding | ·Waste sludge | ·Phosphoric acid |
| ·Pulp and paper | ·Food processing | ·Cracking operations | ·Industrial processing |
Feature
1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Anti-abrasion wet parts: The wet parts can be made of pressure molded rubber. They are completely interchangeable with metal wet parts.
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
4. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc;
5. The shaft seal uses the packing seal, expeller seal and mechanical seal;
The Process Flow
Texture Profile
More Details
TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:
| Material Code | Material Description | Application Components |
| A05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert |
| A07 | 14%-18% Cr White Iron | Impeller, liners |
| A49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners |
| A33 | 33% Cr Erosions & Corrosion Resistance White Iron | Impeller, liners |
| R55 | Natural Rubber | Impeller, liners |
| R33 | Natural Rubber | Impeller, liners |
| R26 | Natural Rubber | Impeller, liners |
| R08 | Natural Rubber | Impeller, liners |
| U01 | Polyurethane | Impeller, liners |
| G01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| D21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| E05 | Carbon Steel | Shaft |
| C21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| S21 | Butyl Rubber | Joint rings, joint seals |
| S01 | EPDM Rubber | Joint rings, joint seals |
| S10 | Nitrile | Joint rings, joint seals |
| S31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| S44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| S50 | Viton | Joint rings, joint seals |
